Exhaust Hose

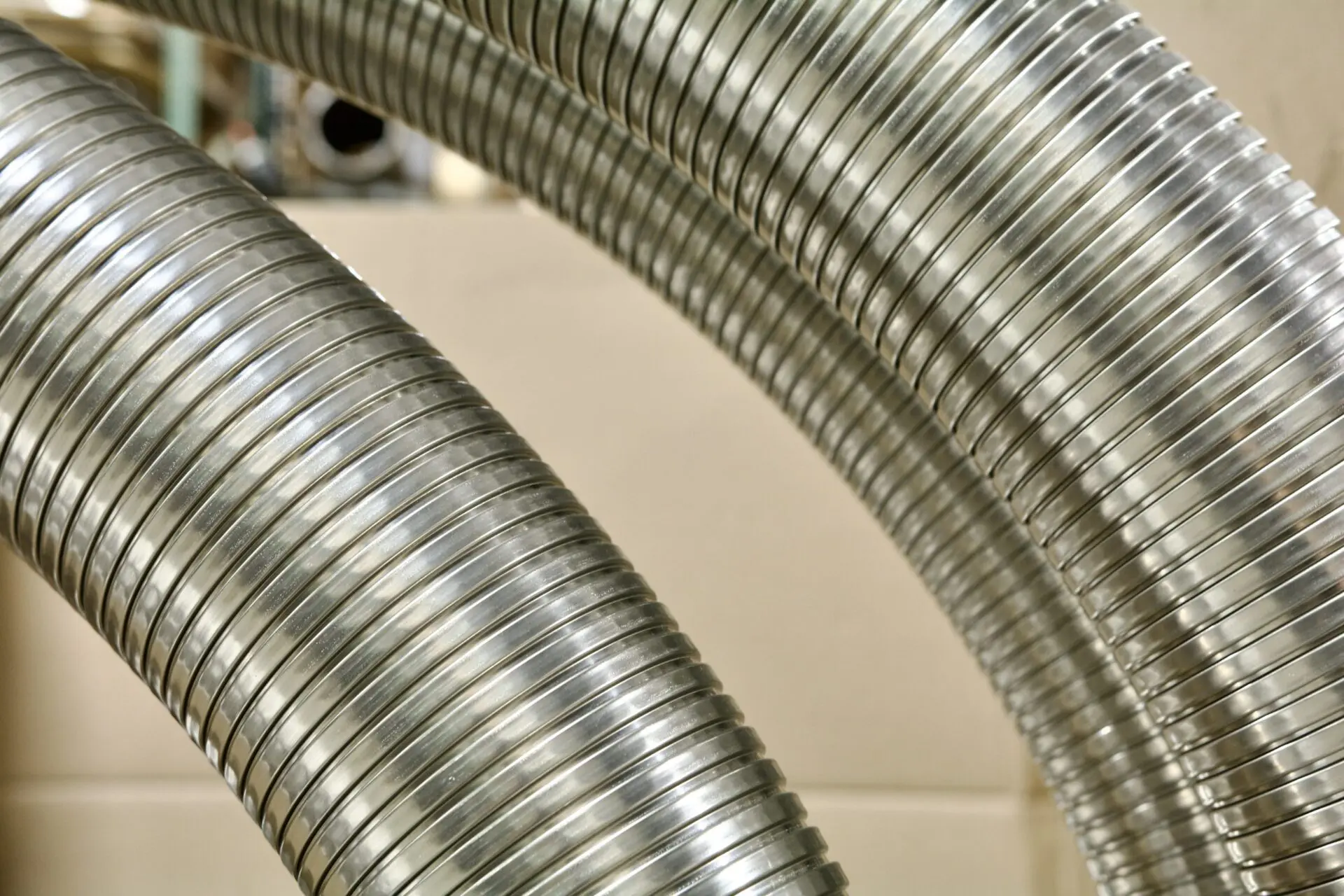

Penflex interlocked exhaust hoses are produced in a wide range of ID sizes, metals and weights. This range is available to provide the right hose for the application at the most economical cost.

Benefits

Range of weight designations to meet broader application needs
Fully interlocked construction for strength and durability
Excellent flexing characteristics
Standard configuration is unpacked and fully extended
Packing available upon request

Typical uses of exhaust hose include engine exhaust and vacuum and collection service, conveying, ventilating lines and protective casing for cable and tubing. They are commonly used as accessories for corrugated hose assemblies as well. Interlocked liners reduce flow velocity while interlocked armor prevents overbending near the end fittings.

The strip thickness, and thus the hose weight, can be selected to match the application depending upon the degree of rough handling and the abrasive conditions of the service. Penflex makes three different weights of exhaust hose as indicated in the following tables.

Series	Weight Designation	Strip Thickness
IE30	Light	.010″ to .012″
IE40	Mid-Weight	.015″
IE50	Standard	.018″ to. 020

Technical Specifications

Construction: Fully interlocked, unpacked
Packing available upon request
Hose material: 304 stainless steel
Other alloys available upon request
Hose sizes: 1/2″ through 8″
Dimensional tolerance: +/- .020”
Tabulated weights apply to stainless steel
Intermediate sizes, alloys and flexibility characteristics are all subject to quotation from the factory.

IE30 Interlocked Exhaust Hose

Nom. ID	Nom. OD	Minimum Coiling Diameter	Wt/Ft
½	0.61	6	0.23
¾	0.83	7	0.32
1	1.11	9	0.41
1 ¼	1.39	11	0.44
1 ½	1.61	13	0.54
1 ¾	1.86	15	0.63
2	2.11	17	0.72
2 ¼	2.36	19	0.80
2 ³/₈	2.54	20	0.85
2 ½	2.61	21	0.89
2 ¾	2.86	23	0.96
2 ⁷/₈	3.08	25	1.00
3	3.11	26	1.06
3 ½	3.61	30	1.24
4	4.20	34	1.41
5	5.22	42	1.76
5 ¹/₂	5.70	46	1.94
6	6.11	50	2.11
7	7.11	58	2.46

Download IE30 Spec Sheet (US)

Download IE30 Spec Sheet (Metric)

IE40 Interlocked Exhaust Hose

Nom. ID	Nom. OD	Minimum Coiling Diameter	Wt/Ft
1 ¼	1.42	8.4	0.58
1 ½	1.67	9.4	0.76
1 ⁵/₈	1.79	10.7	0.81
1 ⁷/₈	2.04	12.2	0.98
2	2.16	13.1	1.01
2 ¼	2.43	14.6	1.15
2 ½	2.67	18.7	1.25
2 ¾	2.91	20.2	1.42
3	3.15	20.4	1.50
3 ¼	3.43	20.9	1.63
3 ½	3.66	23.5	1.79
4	4.14	26.7	2.03

Download IE40 Spec Sheet (US)

Download IE40 Spec Sheet (Metric)

IE50 Interlocked Exhaust Hose

Nom ID	Nom OD	Minimum Coiling Diameter	Wt/Ft
1 ½	1.66	17	0.86
1 ¾	1.91	19	1.00
2	2.20	22	1.13
2 ¼	2.50	25	1.27
2 ½	2.66	27	1.40
2 ¾	2.91	29	1.54
3	3.16	32	1.67
3 ½	3.66	38	1.95
4	4.23	43	2.22
5	5.16	53	2.76
6	6.16	63	3.30
7	7.16	74	3.85
8	8.16	84	4.39
