794 Bronze

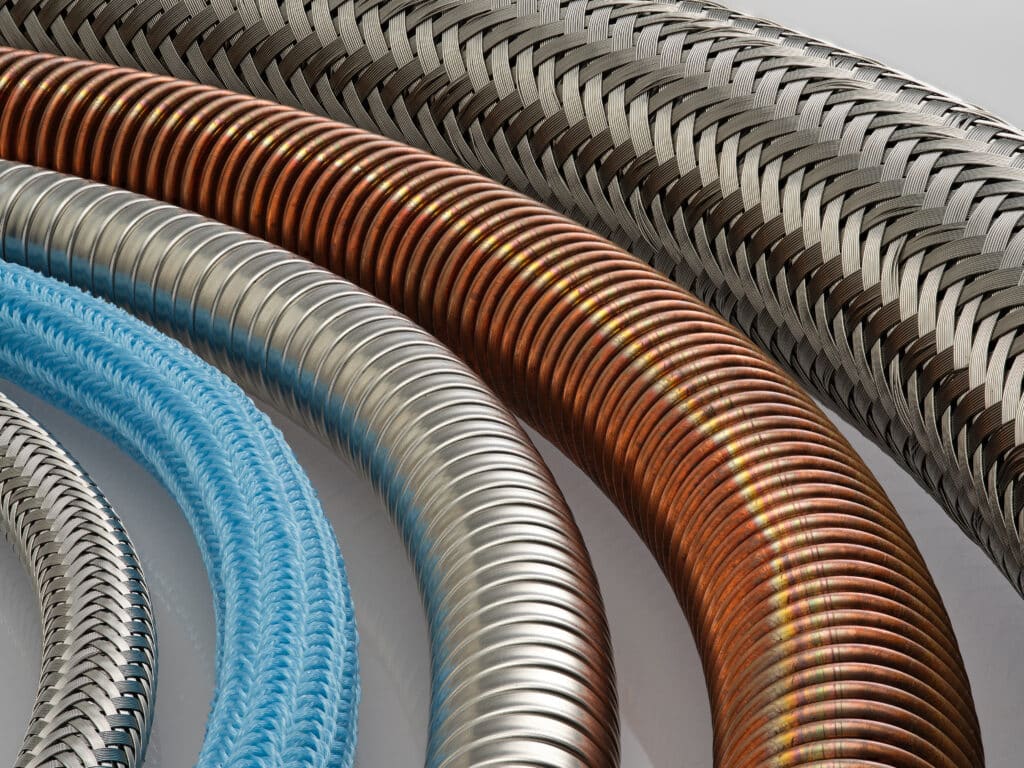

794 series hose and braid is made with bronze, an alloy used most frequently in seismic and water applications and in HVAC piping layouts to connect chillers and for vibration eliminators with copper tube ends.

Technical Specifications

Construction: Annular hose with a standard pitch
Hose material: Bronze
Braid material: Bronze
Hose sizes: 1/4″ through 4″


Nom.I.D. (in.)	Part Number	Braid Layers	Braid Construction	Braid Coverage (%)	Nom. O.D. (in.)	Maximum Pressure @ 70ºF (PSIG)		Bend Radius (in.)		Weight per Foot (Lb.)
Nom.I.D. (in.)	Part Number	Braid Layers	Braid Construction	Braid Coverage (%)	Nom. O.D. (in.)	Working	Nominal Burst	Dynamic	Static	Weight per Foot (Lb.)
	794-004	0			0.49	100	----			0.13
1/4”	794-1BB-004	1	24 x 4 x .016	84	0.57	1,035	4,142	5.5	1	0.23
	794-2BB-004	2			0.65	1,656	6,627			0.33
	794-006	0			0.67	40	----			0.25
3/8”	794-1BB-006	1	24 x 5 x .016	81	0.75	685	2,738	6	1.25	0.36
	794-2BB-006	2			0.83	1,096	4,381			0.47
	794-008	0			0.82	40	----			0.38
1/2”	794-1BB-008	1	24 x 8 x .016	94	0.9	706	2,825	7	1.5	0.57
	794-2BB-008	2			0.98	1,130	4,520			0.76
	794-012	0			1.21	30	----			0.5
3/4”	794-1BB-012	1	36 x 6 x .020	92	1.31	577	2,307	8	2.25	0.83
	794-2BB-012	2			1.41	923	3,691			1.16
	794-016	0			1.51	20	----			0.68
1”	794-1BB-016	1	36 x 8 x .020	95	1.61	470	1,881	10	3	1.12
	794-2BB-016	2			1.71	752	3,009			1.56
	794-020	0			1.85	15	----			0.8
1-1/4”	794-1BB-020	1	48 x 7 x .020	93	1.95	361	1,443	12	3.5	1.31
	794-2BB-020	2			2.05	577	2,309			1.82
	794-024	0			2.18	10	----			1.03
1-1/2”	794-1BB-024	1	48 x 6 x .025	89	2.31	329	1,317	13.5	4	1.73
	794-2BB-024	2			2.43	526	2,107			2.43
	794-032	0			2.5	8	----			1.81
2”	794-1BB-032	1	48 x 8 x .025	92	2.63	317	1,267	17	5	2.73
	794-2BB-032	2			2.75	507	2,027			3.65
	794-040	0			3.18	8	----			1.39
2-1/2”	794-1BB-040	1	48 x 11 x .025	97	3.31	272	1,090	22	8	2.66
	794-2BB-040	2			3.43	435	1,744			3.93
	794-048	0			3.65	10	----			1.44
3”	794-1BB-048	1	72 x 12 x .020	92	3.78	211	844	24	12	2.84
	794-2BB-048	2			3.91	338	1,352			4.11
	794-064	0			4.81	8	----			3.45
4”	794-1BB-064	1	72 x 9 x .025	90	4.94	142	568	26	14	5.03
	794-2BB-064	2			5.06	227	909			6.61
